EMP-CENTAURI PROFI (5/6)

Мултиключ 5 към 6

EMP-CENTAURI PROFI (5/6)

Модел: MS5/4PIU-4

5 входа / 6 изхода самостоятелен мултиключ за разпределение на сигнала от един сателит (с Quattro конвертор) и ефирна антена към 6 потребители

EMP-CENTAURI PROFI (5/6)

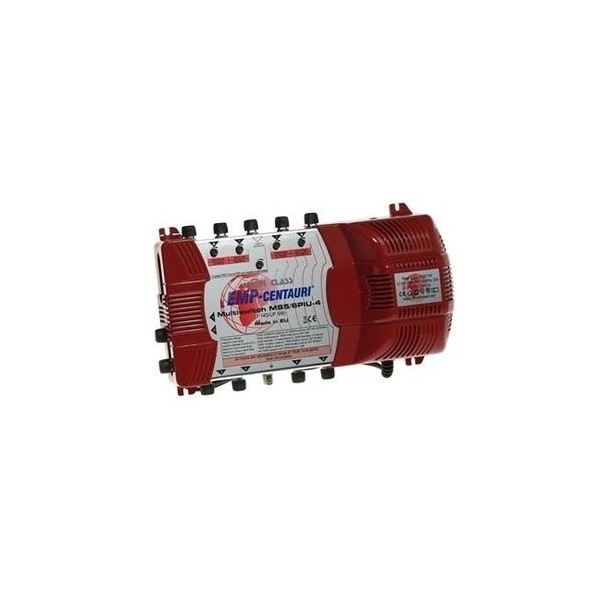

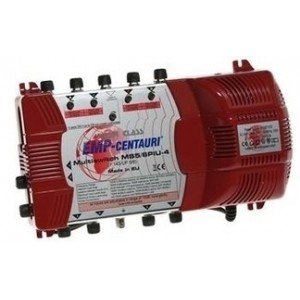

Модел: MS5/6PIU-4

Product description:

5in/6out standalone multiswitch for distribution of 4 SAT IF signals including terrestrial for up to 6 users

Parameter	Condition	Value
Frequency range	LNB inputs	950-2300 MHz
	Terr. input	5-862 MHz (passive) 40-862 MHz (active)
	Outputs	5-2300 MHz (passive) 40-2300 MHz (active)
Control		13/18 V + 0/22 kHz
Insertion loss	Sat.	4 dB avg
	Terr. active	3 dB avg
	Terr. passive	20 dB avg
Sat. inputs isolation		20 dB min
Maximum input level*	Sat.	90 dBµV avg**
Maximum input level*	Terr.	100 dBµV avg (passive) 93 dBµV avg (active)
Maximum output level*	Sat.	86 dBµV avg
Maximum output level*	Terr.	80 dBµV avg (passive) 90 dBµV avg (active)
Power consumption	From each receiver	40 mA (18 V)
Power consumption	From internal power supply	4 W (passive) 6 W (active) + LNB
Terr. preamplifier supply		100 mA max (12 V DC)
Dimensions (w,d,h)		27.0 x 15.2 x 8.7 cm (power cord length 130 cm)
Temperature range		-30 ~ +70 °C
