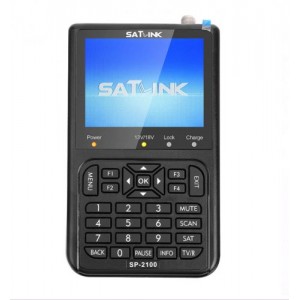

Satlink WS-6916 - DVB-S2 HD 3.5" FTA digital satellite meter

Професионален уред за настройка на сателитни системи

Описание

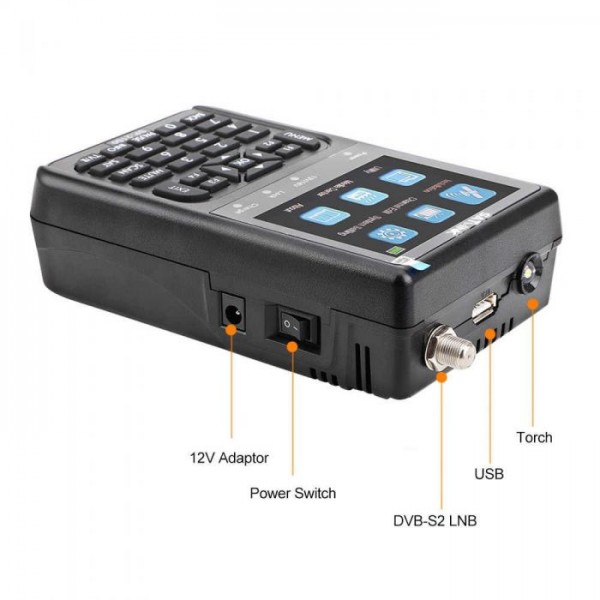

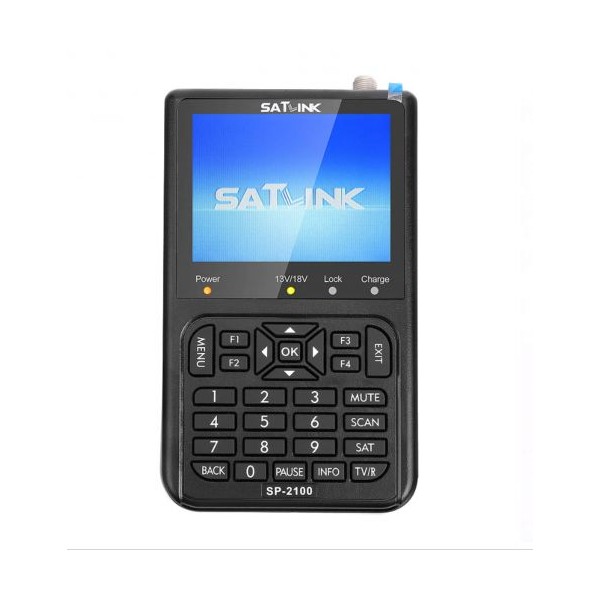

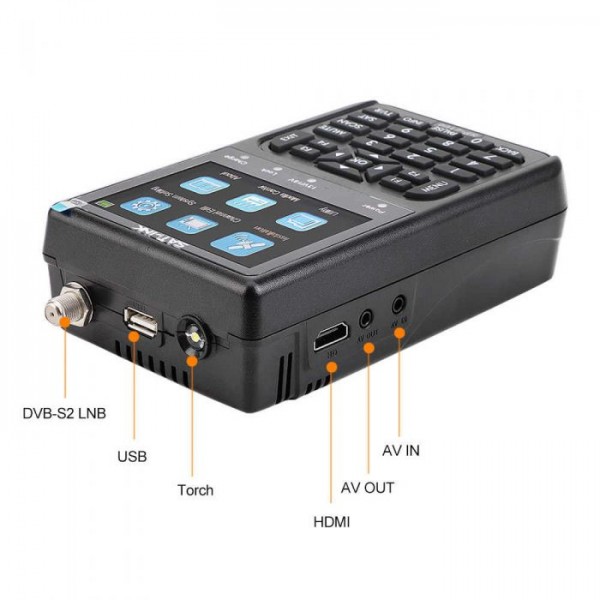

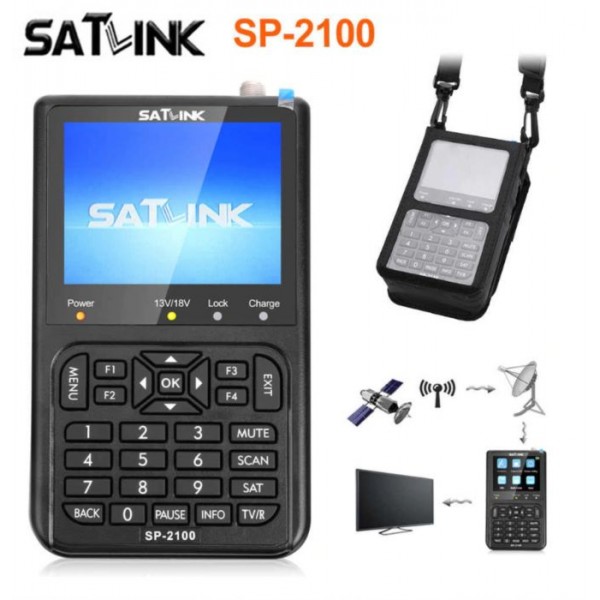

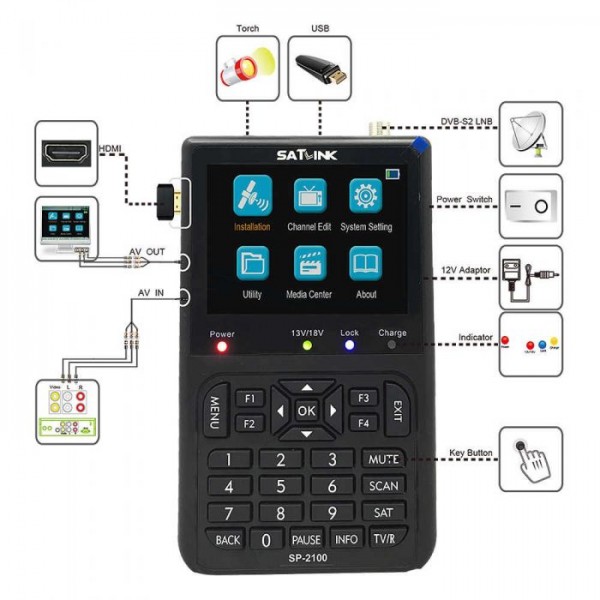

SP-2100 is a DVB-S/S2 and MPEG-2/4 H.264 compliant handheld satellite meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital satellite tv service to residential homes or multi-dwelling units.

Features:

• Fully HD DVB-S / S2 and MPEG-2 / 4 compliant.
• 3.5 inch HD TFT LCD Color Screen Display.
• Auto Angle Calculate of AZ ,EL
• Signal Strength and Quality Measurement
• Supports auto, blind, manual and NIT scan Mode.
• MPEG-2 / H.264 hardware decoding.
• Software upgrade and file transfer via USB.
• DiSEqC 1.0 / 1.1 / 1.2 and 22 kHz Tone.
• Lock the signal with panel led and sound indicators.
• 4 Hours battery operation time.
• LNB short circuit protection.
• Support language: English, French, Farsi, Russian, Arabic, Portuguese, Turkish.

Specifications:

• Connector Type: F Male
• Demodulation Type: QPSK, 8PSK,16APSK, 32APSK
• Input Frequency:950 to 2150 MHz; Signal Input Level: -65 to -25 dBm
• Band Switch Control: 22 kHz
• LNB Supply: 13V / 18V, IMax 350mA
• Symbol Rate: 2
• Data Interface: USB Type A
• File Management System: NTFS, FAT32, FAT16
• File Format: Wma, Mp3, Mp4, Avi, Jpg, Jpeg, Bmp, Img
• Display: LCD TFT Transmit; Resolution: 320x240 (RGB)
• AV Input / Output Connector Type: 3.5mm Jack
• Video Input / Output: CVBS; Audio Input / Output Stereo L / R
• Product Size: 101 x 77 x 47 mm ( 4 * 3 * 1.9 inch )
• Product Weight: 0.46 Kg
• Li-Ion Battery: 7.4V / 2600mAh
• Adapter: Input: 100 to 240 VAC, 50 / 60 Hz; Output: 12V DC / 1.5A

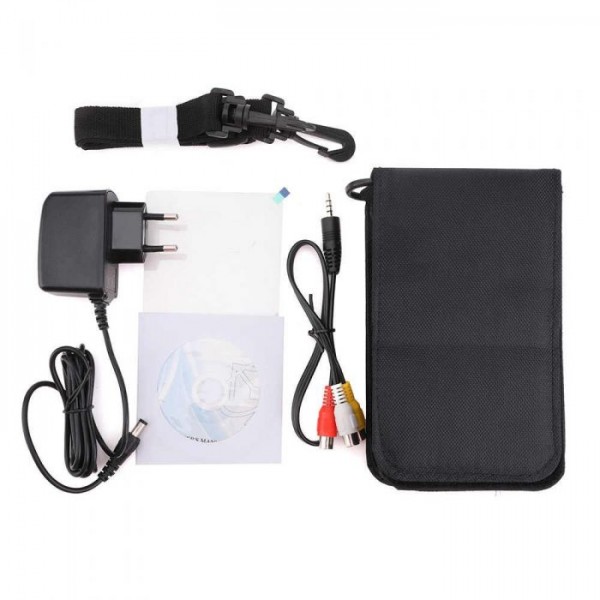

Комплектът включва:

• 1 X SP-2100 Satellite Finder Meter
• 1 X Black Protective Bag
• 1 X Bag Strap
• 1 X Power Adapter
• 1 X AV Cable
• 1 X CD (Includes English Manual)

Производител: SATLINK
