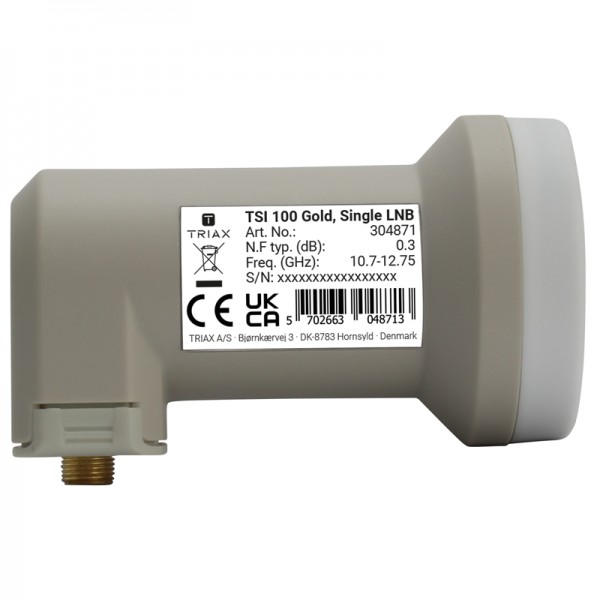

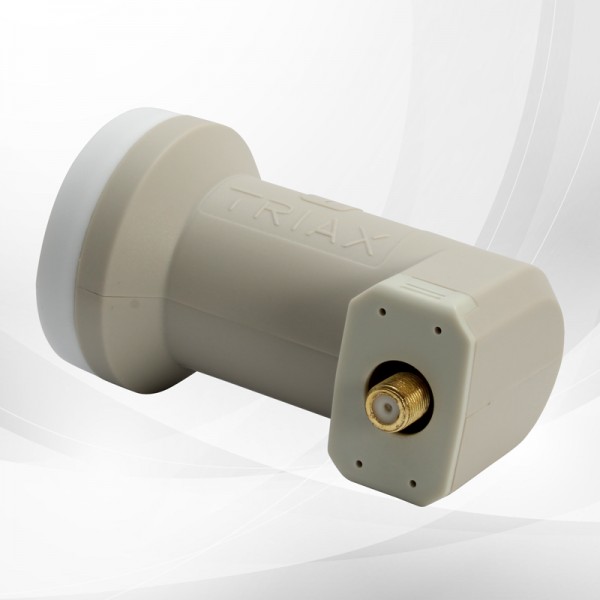

TRIAX TSI 100 Gold Single LNBЕдиничен конвертор с голямо усилване
| CHARACTERISTICS | |
|---|---|
| Phase noise @ room temperature - 1 kHz | - 65 dBc/Hz |
| Phase noise @ room temperature - 10 kHz | - 83 dBc/Hz |
| Phase noise @ room temperature - 100 kHz | - 95 dBc/Hz |
| Image rejection (min.) | 40 dB |
| Output VSWR | 2.0:1 |
| Feedhorn diameter | Ø 40 mm |
| LO temperature drifting | ± 3 MHz |
| LNB type | Single |
| FREQUENCY | |
| Input frequency low band | 10.7...11,7 GHz |
| Input frequency high band | 11.7...12.75 GHz |
| Output frequency low band | 950...2150 MHz |
| L.O. frequency low band | 9.75 GHz |
| L.O. frequency high band | 10.6 GHz |
| L.O. technology | PLL |
| GAIN | |
| Conversion gain (typ.) | 57...65 dB |
| Noise figure max. | 0.3 dB |
| ISOLATION | |
| Cross polarization isolation | >23 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Current consumption | 80 mA |
| Operating voltage vertical | 11.5...14.0 V/DC |
| Operating voltage horizontal | 16.0...20.0 V/DC |
| Operating temperature range | -30...60 °C |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Reflector type | Offset |
| Product Height | 95 mm |
| Product Depth | 57 mm |
| Product Width | 64 mm |
| Colour | RAL 9002 - Grey white |
| Packing QTY | 1 |
| Net Weight | 0,076 kg |
| Tara Weight | 0,020 kg |
| Total Weight | 0,096 kg |
