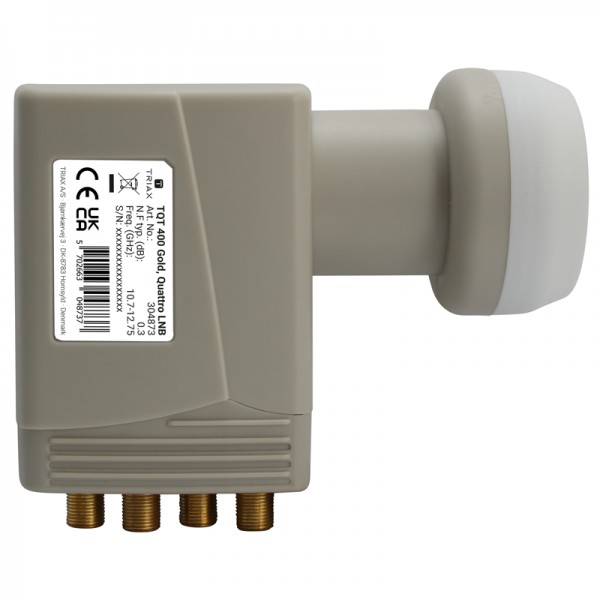

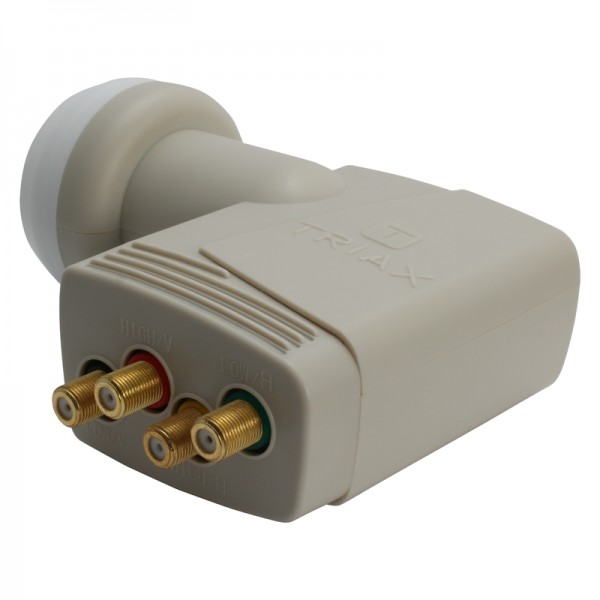

TRIAX TQT 400 GOLD Quattro Universal LNB, Четирибандов конвертор за мултиключ с голямо усилване

Quattro TRIAX TQT 400 Gold, HIGH GAIN Universal LNB

TRIAX TQT 400 Gold Quattro LNBЧетирибандов конвертор за мултиключ с голямо усилване

◊ Конвертор за сигнал от един спътник към мултиключ (VL,HL,VH,HH).

◊ Гарантирано голямо усилване и ниско ниво на шум.

◊ Издържлив на лоши атмосферни условия.

◊ LTE / 4G / 5G protected.

CHARACTERISTICS
Phase noise @ room temperature - 1 kHz	- 60 dBc/Hz
Phase noise @ room temperature - 10 kHz	- 80 dBc/Hz
Phase noise @ room temperature - 100 kHz	- 92 dBc/Hz
Image rejection (min.)	40 dB
Output VSWR	2.2:1
Feedhorn diameter	Ø 40 mm
LO temperature drifting	± 2 MHz
LNB type	Quattro
FREQUENCY
Input frequency low band	10.7...11,7 GHz
Input frequency high band	11.7...12.75 GHz
Output frequency low band	950...2150 MHz
L.O. frequency low band	9.75 GHz
L.O. frequency high band	10.6 GHz
L.O. technology	PLL
GAIN
Conversion gain (typ.)	53...68 dB
Noise figure max.	0.3 dB
ISOLATION
Cross polarization isolation	22 dB
ELECTRICAL
Impedance	75 Ω
OPERATIONAL
DC Current consumption	240 mA
Operating voltage vertical	11.5...14.0 V/DC
Operating voltage horizontal	16.0...20.0 V/DC
Operating temperature range	-30...60 °C
CONNECTORS
Connector Type	F-female
MECHANICAL
Reflector type	Offset
Product Height	135.2 mm
Product Depth	61 mm
Product Width	112 mm
Colour	RAL 9002 - Grey white
Packing QTY	1
Net Weight	0.210 kg
Tara Weight	0.034 kg
Total Weight	0.244 kg
